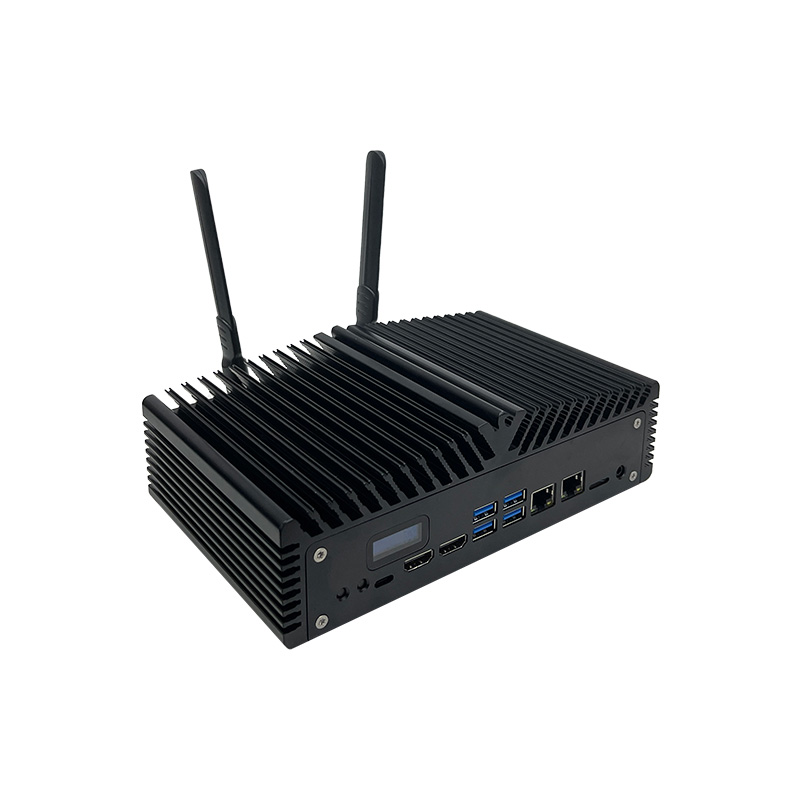

FLAME BOX

Leetop flame NX is an embedded artificial intelligence computer, which can give up to 21tops computing power to many terminal devices. Leetop-flame-nx provides fast passive heat dissipation design, which can meet industrial standards such as earthquake resistance and anti-static.

The option marked with * is required. After submission, our company will arrange a business email to send you the corresponding product PDF document

Product features

Product function

Leetop Flame Box

Nvidia Jetson Nano / Xavier NX / Orin NX

Take supercomputer performance to the edge.



      Small Size. Small Price. Big AI Discoveries.



Leetop FLAME, based on discover the power of AI and robotics with NVIDIA® Jetson . It’s small, powerful, and priced for everyone . This means educators, students, and other enthusiasts can now easily create projects with fast and efficient AI using the entire GPU-accelerated NVIDIA software stack.


The Leetop FLAME benefits from new cloud-native support across the entire Jetson platform line-up, making it easier to build, manage, and deploy AI at the edge.

Pre-trained AI models from NVIDIA NGC together with the NVIDIA Transfer Learning Toolkit, provides a faster path to trained and optimized AI networks. Containerized deployment to Jetson devices also allows flexible and seamless updates.

NVIDIA JetPack™ SDK enables multi-modal AI application development for Leetop FLAME with accelerated libraries supporting all major AI frameworks, as well as computer vision, computer graphics, multimedia, and more. Together with the latest NVIDIA tools for application development and optimization, JetPack ensures fast time to market and reduced development costs.


Designed for ease of development and speed of deployment, Leetop is the most flexible and scalable platform to get to market and continuously update AI software over the lifetime of a product.

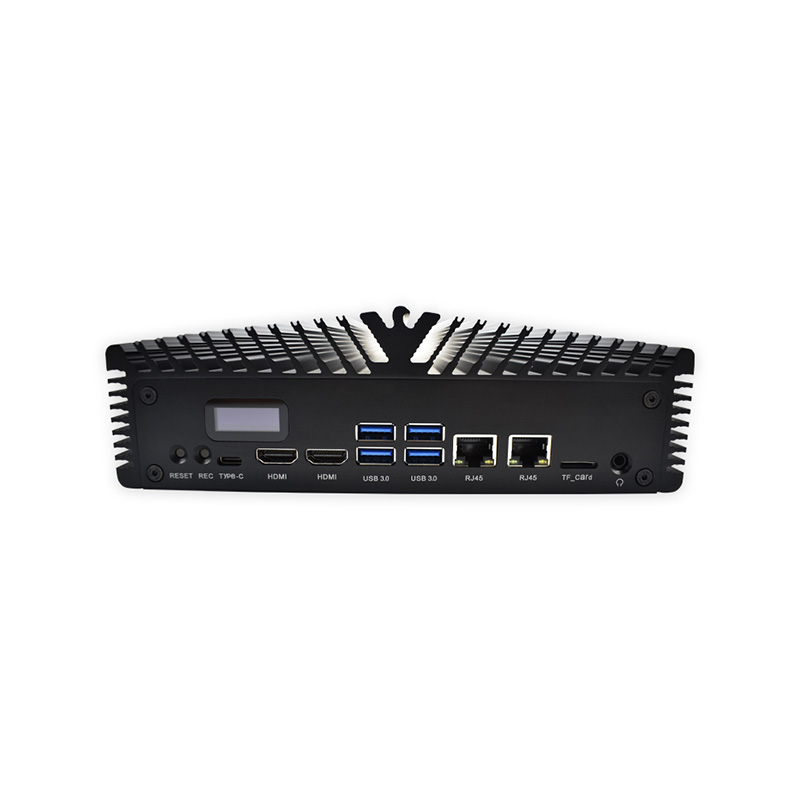

Interface


Interface

Specification

Network

2 x Gigabit Ethernet Connector (10/100/1000)

Video Output

2 x HDMI 2.0 (TYPE A)

USB

4 x USB 3.0 (TYPE A) + 1 x USB-OTG (Type C)

TF Slot

1 x TF Card Slot

Sata

2.5" hard drive (SATA) x 1 ( 5*SATA Interface)

Function Keys

1 x Reset Button + 1 x Recovery Button

Audio

1 x Audio Jack (3.5mm)

Serial port (Optional)

RS232 x 1 (2) / RS485 x 1 (2) / 1X SPI / 1x CAN /2x I2C Link(+3.3V I/O);

1x UART / 1X SPI / 2x GPIO(+3.3V Level)

Power Requirements

+9V to +19V DC Input @ 3A


KEY FEATURES



Processor

NVIDIA Jetson Nano

NVIDIA Jetson TX2 NX

NVIDIA Jetson Xavier NX

NVIDIA Jetson Orin NX

AI Performance

472 GFLOPs

1.33 TFLOPS

21 TOPS (INT8)

100 TOPs / 50 TOPs(INT8)

GPU

NVIDIA Maxwell architecture with 128

NVIDIA CUDA® cores

NVIDIA Pascal architecture

256 NVIDIA® CUDA® Cores

384-core NVIDIA Volta™ GPU with 48 Tensor Cores

NVIDIA Ampere Architecture with 1024 NVIDIA CUDA cores and 32 Tensor

cores

GPU Max Freq


1.3 GHz

1100 MHz

1 GHz

CPU

Quad-core ARM Cortex- A57 MPCore processor


6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3

8-core NVIDIA A78 CPU

CPU Max Freq


2 GHz

2-core @ 1900MHz 4/6-core @ 1400Mhz

2 GHz

Memory

4 GB 64-bit LPDDR4,

1600MHz

25.6 GB/s

4 GB 128-bit LPDDR4

8 GB 128-bit LPDDR4x @ 1866MHz

59.7GB/s

12 GB, 102 GB/s

Storage


16 GB eMMC 5.1


External (i.e. NVMe using x1 PCIe)

Power

5W |10W

15W

10W|15W|20W

10W|15W|25W

PCIe

1 x4

(PCIe Gen2)

1 x1 + 1 x2 (Gen2), Root Port

only.

1 x1 + 1x4

(PCIe Gen3, Root Port & Endpoint)

3 x1 + 1 x4 or 2 x1 + 1 x2 + 2 x4, all Gen4. x1 and x2 support Root Port only. x4 supports

CSI Camera

Up to 4 cameras

12 lanes MIPI CSI-2

D-PHY 1.1 (up to 18 Gbps)

12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (1.5 Gb/s

per pair)

Up to 6 cameras (36 via virtual channels)

12 lanes MIPI CSI-2

D-PHY 1.2 (up to 30 Gbps)

8 lanes (2x4 or 4x2) MIPI CSI-2 D-PHY 1.2 (2.5 Gb/s per pair)

Video Encode

250MP/sec

1x 4K @ 30 (HEVC)

2x 1080p @ 60 (HEVC)

4x 1080p @ 30 (HEVC)

4x 720p @ 60 (HEVC)

9x 720p @ 30 (HEVC)

1x 4Kp30

2x1080p60

4x1080p30

4x720p60

9x720p30

(H.265 & H.264)

2x 4K60 |4x 4K30 |10x 1080p60 |

22x 1080p30 (H.265)



2x 4K60 |4x 4K30 |10x 1080p60 |

20x 108p30 (H.264)

AV1

1x8K30 2x4K60 4x4K30

9x1080p60 18x1080p30

H.265

1x8K30 2x4K60 6x4K30

12x1080p60 24x1080p30

H.264

1x4K60 2x4K30 6x1080p60 12x1080p30

VP9 24x1080p30

Video Decode


1x 4K60 2x 4K30 4x 1080p60

8x 1080p30 9x 720p60 (H.265 & H.264)

2x 8K30 |6x 4K60 |12x 4K30 |

22x 1080p60 |44x 1080p30 (H.265)

2x 4K60 |6x 4K30 |10x 1080p60 |22x

1080p30 (H.264)

2 x4K30 |6x1080p60

|14x1080p30(VP9)

(AV1)1x4K30 |3x1080p60 |6x1080p30 (H.264/H.264)1x4K60 |2x4K30

|6x1080p60 |14x1080p30

Display

HDMI 2.0 and eDP 1.4


2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0

One multi-mode (8K60, 2x4K60), (e)DP

1.4 (HBR3, MST, DSCT), HDMI™ 2.1

DL Accelerator

n/a

n/a

2x NVDLA Engines

2x NVDLA Engines, v2

Vision Accelerator

n/a

n/a

7-Way VLIW Vision Processor

7-Way VLIW Vision Processor, v2

Networking


10/100/1000 BASE-T Ethernet

10/100/1000 Mbit


Install Dimension


FLAME-BOX(图1)
