Leetop-FLAME-ENX is an embedded artificial intelligence computer capable of empowering many end devices with up to 21TOPS of computing power. leetop-FLAME-ENX offers a fast passive thermal design that can meet industrial standards such as anti-vibration and anti-static. Meanwhile, Leetop-FLAME-ENX is rich in interfaces and cost-effective.
产品规格 Specifications
处理器模组 Processor
| Processor | NVIDIA Jetson Xavier NX | NVIDIA Jetson Nano | NVIDIA Jetson Orin NX |
| AI Performance | 21 TOPS (INT8) | 472 GFLOPs | Up to 100 (S) INT8 TOPs and 50 (D) INT8 TOPs |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores | NVIDIA Maxwell architecture with 128 NVIDIA CUDA® cores | NVIDIA Ampere Architecture with 1024 NVIDIA CUDA cores and 32 Tensor cores |
| GPU Max Freq | 1100 MHz | 1 GHz | |
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 | Quad-core ARM Cortex- A57 MPCore processor | 8-core NVIDIA A78 CPU |
CPU Max Freq | 2-core @ 1900MHz 4/6-core @ 1400Mhz | 2 GHz | |
| Memory | 8 GB 128-bit LPDDR4x @ 1866MHz 59.7GB/s | 4 GB 64-bit LPDDR4, 1600MHz 25.6 GB/s | 12 GB, 102 GB/s |
| Storage | 16 GB eMMC 5.1 | 16 GB eMMC 5.1 | External (i.e. NVMe using x1 PCIe) |
| Power | 10W|15W|20W | 5W |10W | 10W|15W|25W |
| PCIe | 1 x1 + 1x4 (PCIe Gen3, Root Port & Endpoint) | 1 x4 (PCIe Gen2) | 3 x1 + 1 x4 or 2 x1 + 1 x2 + 2 x4, all Gen4. x1 and x2 support Root Port only. x4 supports |
| CSI Camera | Up to 6 cameras (36 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) | Up to 4 cameras 12 lanes MIPI CSI-2 D-PHY 1.1 (up to 18 Gbps) | 8 lanes (2x4 or 4x2) MIPI CSI-2 D-PHY 1.2 (2.5 Gb/s per pair) |
Video Encode | 2x 4K60 |4x 4K30 |10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 |4x 4K30 |10x 1080p60 | 20x 108p30 (H.264) | 250MP/sec 1x 4K @ 30 (HEVC) 2x 1080p @ 60 (HEVC) 4x 1080p @ 30 (HEVC) 4x 720p @ 60 (HEVC) 9x 720p @ 30 (HEVC) | AV1 1x8K30 2x4K60 4x4K30 9x1080p60 18x1080p30 H.265 1x8K30 2x4K60 6x4K30 12x1080p60 24x1080p30 H.264 1x4K60 2x4K30 6x1080p60 12x1080p30 VP9 24x1080p30 |
Video Decode | 2x 8K30 |6x 4K60 |12x 4K30 | 22x 1080p60 |44x 1080p30 (H.265) 2x 4K60 |6x 4K30 |10x 1080p60 |22x 1080p30 (H.264) 2 x4K30 |6x1080p60 |14x1080p30(VP9) | (AV1)1x4K30 |3x1080p60 |6x1080p30 (H.264/H.264)1x4K60 |2x4K30 |6x1080p60 |14x1080p30 | |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 | HDMI 2.0 and eDP 1.4 | One multi-mode (8K60, 2x4K60), (e)DP 1.4 (HBR3, MST, DSCT), HDMI™ 2.1 |
DL Accelerator | 2x NVDLA Engines | 2x NVDLA Engines, v2 | |
Vision Accelerator | 7-Way VLIW Vision Processor | 7-Way VLIW Vision Processor, v2 | |
| Networking | 10/100/1000 BASE-T Ethernet | 10/100/1000 BASE-T Ethernet | 10/100/1000 Mbit |

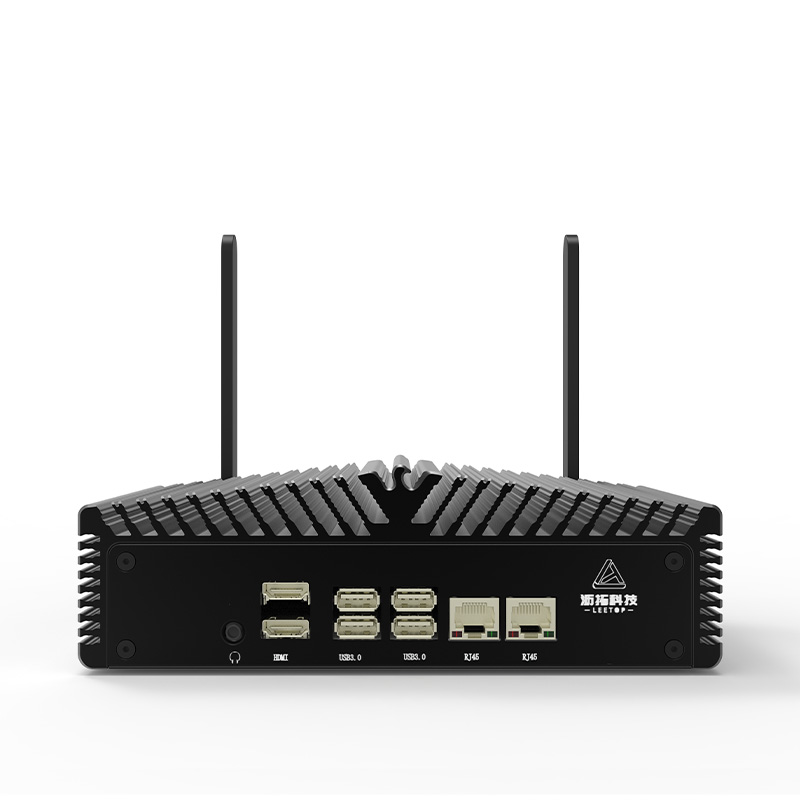

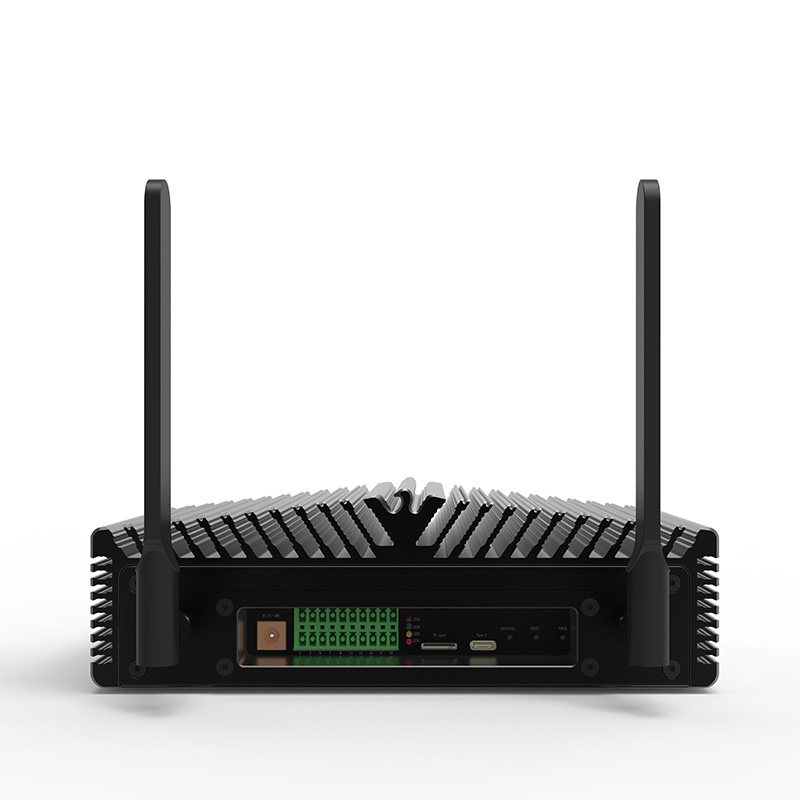

接口 I/O
| Feature | A205 E Carrier for NVIDIA Jetson NX |
| Module Compatibility | NVIDIA Jetson NX |
| PCB Size / Overall Size | 115mm x 105mm |
| Display | 2x HDMI |
| Ethernet | 2x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0 Type C |
| M.2 KEY M | 1x M.2 KEY M Interface |
| Camera | 120P摄像头接口 |
| TF_CARD | 1x TF_CARD |
| USB 2.0 | ZIF 20P 0.5mm pitch |
| SPI Bus | 1X SPI Bus(+3.3V Level) |
| FAN | 1 x FAN(5V PWM) |
| CAN | 1x CAN, 1CAN 收发器 |
| RS485 | 1 x RS485 |
| RS232 | 1 x RS232 |
| Misc. | 2x I2C Link（+3.3V I/O） 1X SPI Bus(+3.3V Level) 2x LED STATE |
| Power Requirements | +9---+36V DC Input @ 8A |
| Operating Temperature | -25 o C to +80 o C |
| Warranty and Support Accessories | 1 Year Warranty and Free Support |
供电 Power Supply
| Power Supply | Specification |
| Input Type | DC |
| Input Voltage | +9---+36V DC Input @ 8A |
| Typical consumption | 30W |
结构 Mechanical
| Mechanical | Specification |
| Dimensions (W x H x D) | 209.0mm x 68.3mm x 130.0mm |
| Weight | 1.6kg |
环境 Environmental
| Environmental | Specification |
| Operating Temperature | -20℃-60℃, 0.2~0.3m/s air flow |
| Storage Temperature | -25℃ ~ +80℃ |
| Storage Humidity | 10%-90% 非结露环境 non-condensing |
结构尺寸及安装 Install Dimension

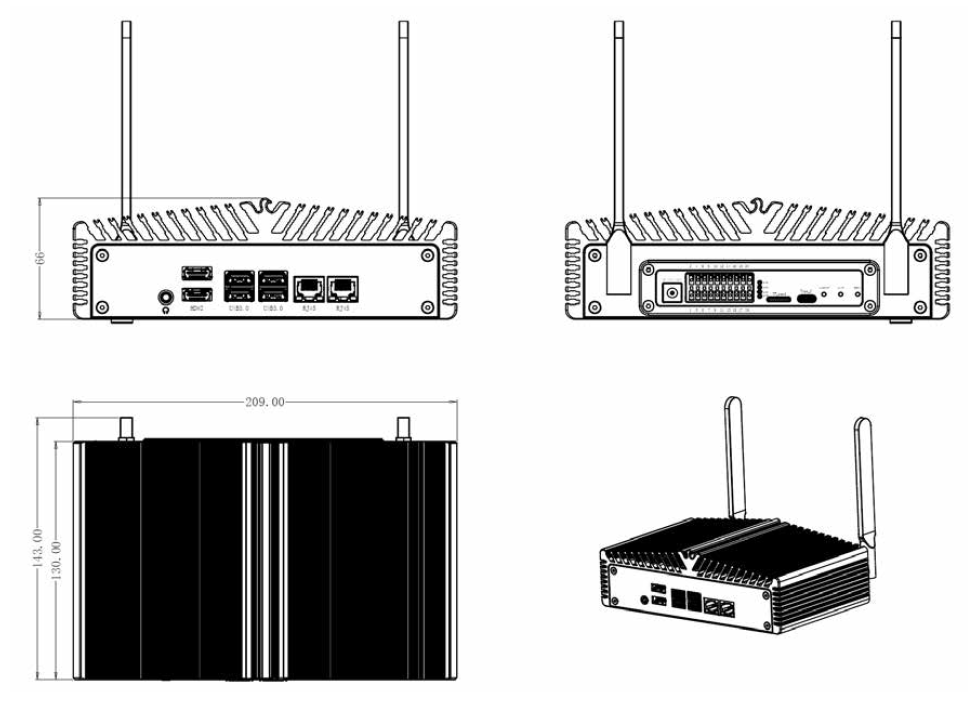

Leetop-FLAME-ENX主体尺寸如下图所示：
Dimensions as below:
