产品简介：
Leetop-SUBKIT-Orin NX是一款嵌入式人工智能计算机，能够为众多终端设备赋予高达70/100TOPS的计算力。Leetop-SUBKIT-Orin NX提供快速的主动散热设计，可以满足抗震防静电等工业标准。同时Leetop-SUBKIT-Orin NX接口丰富，性价比高。
产品规格：
处理器模块：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
接口I/O：
| 接口 Interface | 规格 Specification |
| Network | 1 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 4 × USB 3.0 Type A (Integrated USB 2.0) 1 × USB 3.0 Type C (Integrated USB 2.0,Support OTG) |
| Video output | 1 × HDMI 2.0 (TYPE A) |
| CAN | 1 × CAN |
| SPI Bus | 2 × SPI Bus(+3.3V Level) |
| M.2 KEY M | 1 × M.2 KEY M Interface(Type 2280) |
| M.2 KEY E | 1 × M.2 KEY E Interface |
| Camera | 2x CSI |
供电Power Supply：
| Power Supply | Spec |
| Input Voltage | +9--+20V DC Input 5A |
| power consumption | above 60W |
结构Mechanical：
| Mechanical | Spec |
| Dimensions (W×D ×H) | 100×80.6×33.4 (mm) |
| Weight | 0.179KG |
环境Environmental：
| Environmental | Spec |
| Operating Temperature | -25℃-75℃ 0.2~0.3m/s气流 |
| Storage Temperature | -40C-80℃ |
| Storage Humidity | 10%-90% non-condensing 非结露环境 |
尺寸示意图Schematic diagram of dimensions：

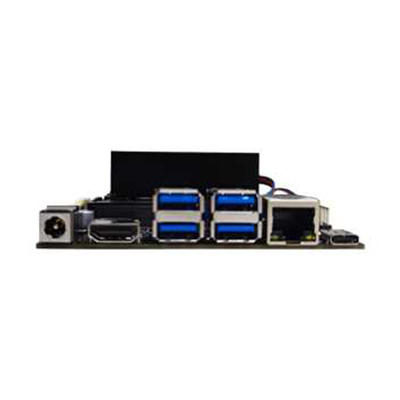

| 正视图 Front view | 左视图 Left view |
 |  |

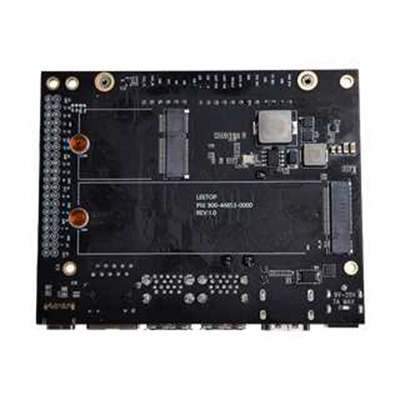

| 俯视图 Up view | 后视图 Rear view |
 |  |
