Product features
Product function
产品简介：
Leetop_ALP_607是基于英伟达Orin NX核心板研发的一款嵌入式人工智能计算机，能够为众多终端设备赋予高达70/100TOPS的计算力Leetop_ALP_607提供快速的主动散热设计，可以满足抗震防静电等工业标准。同时Leetop_ALP_607接口丰富，性价比高。
Leetop_ALP_607 is an embedded Al computer based onNvidia's Orin NX core board, enabling computing power up to70/100TOPS for a wide range of terminal devices.Leetop_ALP_607 provides fast active cooling design to meetindustry standards such as anti-seismic and anti-static. At thesame time, Leetop_ALP_607 has abundant ports and high costperformance.
产品规格：
处理器模块：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
接口I/O：
| 接口 Interface | 规格 Specification |
| Network | 2 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0+3.0 Type |
| Video output | 1 × HDMI |
| CAN | 1 × CAN 1CAN（接.收发器） |
| RS485 | 1 x RS485 |
| RS232 | 1 x RS232 |
| SPI Bus | 1 × SPI Bus(+3.3V Level) |
| M.2 KEY M | 1x M.2KEY M |
| USB2.0+3.0 | ZIF 20P 0.5mm pitch |
供电 Power Supply：
| Power Supply | Spec |
| Input Voltage | +12（7A)--+36V(3A) DC Input |
| power consumption | 70W |
结构 Mechanical：
| Mechanical | Spec |
| Dimensions (W×D ×H) | 224x130x65.5(mm) |
| Weight | 2KG |
环境 Environmental：
| Environmental | Spec |
| Operating Temperature | -25℃-75℃ 0.2~0.3m/s气流 |
| Storage Temperature | -20℃-60℃ |
| Storage Humidity | 10%-90% non-condensing 非结露环境 |
尺寸示意图 Schematic diagram of dimensions：

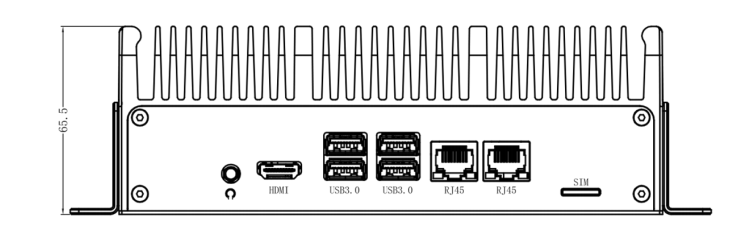

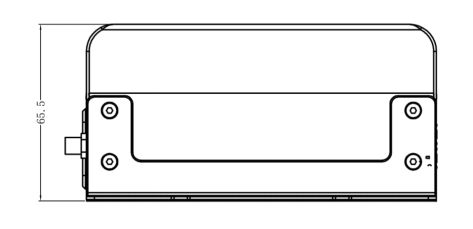

| 正视图 Front view | 左视图 Left view |
 |  |

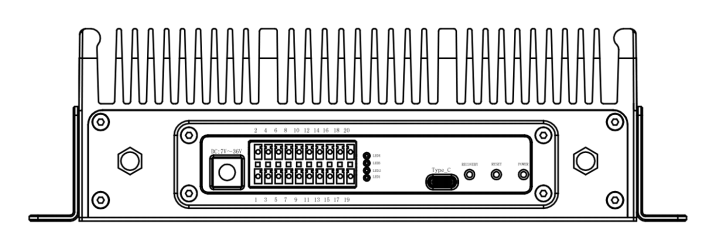

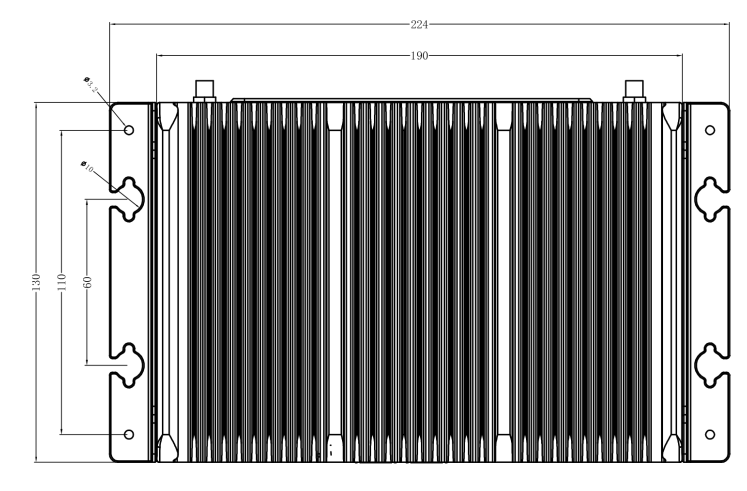

| 俯视图 Up view | 后视图 Rear view |
 |  |
