Experience the world's most powerful AI computer in a small Jetson form factor, built for energy-efficient autonomous machines. Compared to the previous generation, it offers 5x the performance and twice the number of CUDA cores, as well as high-speed interface support for multiple sensors. Jetson Orin NX has 100 TOPS of computing power for multiple concurrent AI inference pipelines in a compact form factor with outstanding performance。
Built for a new generation of small AI products
- size
- performance
- power
ORIN-like performance NANO-like size
Measuring just 70mm x 45mm, Jetson Orin™ NX delivers 5x the performance of NVIDIA Jetson Xavier™ NX. Small size, high performance, and high energy efficiency bring superior performance to next-generation products such as drones and handheld devices。
great performance
NVIDIA Jetson Orin NX features NVIDIA Ampere architecture GPU and Arm® Cortex®-A78AE CPU, as well as next-generation deep learning and vision accelerators. High-speed IO, 102GB/s memory bandwidth, and 12GB DRAM capable of feeding multiple concurrent AI application pipelines。
Low power consumption
Experience the increased performance of small form factor robots and autonomous machines in a compact, energy efficient system. The power consumption of the compact module is only 10 watts and can be capped at 25 watts. Gain insight into Jetson Orin NX's disruptive size, performance and power consumption, as well as the NVIDIA JetPack™ SDK, NVIDIA AI software stack and ecosystem of services and products to get your products to market fast。
Jetson Orin NX Module Specifications
Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI 性能 | 70 TOPS | 100 TOPS |
| GPU | 搭载 32 个 Tensor Core 的 1024 核 NVIDIA Ampere 架构 GPU | |
| GPU 最大频率 | 765 MHz | 918 MHz |
| CPU | 6 核 Arm® Cortex®-A78AE v8.2 64 位 CPU 1.5MB L2 + 4MB L3 | 8 核 Arm® Cortex®-A78AE v8.2 64 位 CPU 2MB L2 + 4MB L3 |
| CPU 最大频率 | 2 GHz | |
| DL 加速器 | 1x NVDLA v2 | 2x NVDLA v2 |
| DLA 最大频率 | 614 MHz | |
| 视觉加速器 | 1x PVA v2 | |
| 安全集群引擎 | - | |
| 显存 | 8GB 128 位 LPDDR5 102.4GB/s | 16GB 128 位 LPDDR5 102.4GB/s |
| 存储 | （支持外部 NVMe） | |
| 视频编码 | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) | |
| 视频解码 | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | |
| 摄像头 | 最多 4 个摄像头（通过虚拟通道最多可支持 8 个***） 8 通道 MIPI CSI-2 D-PHY 2.1（高达 20 Gbps） | |
| PCIe* | 1 x4 + 3 x1 （PCIe 4.0，根端口和端点） | |
| USB* | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 | |
| 网络* | 1x GbE | |
| 显示接口 | 1x 8K30 多模 DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 | |
| 其他 I/O | 3x UART、2x SPI、2x I2S、4x I2C、1x CAN、DMIC 和 DSPK、PWM、GPIO | |
| 功耗 | 10 瓦至 20 瓦 | 10 瓦至 25 瓦 |
| 规格尺寸 | 69.6mm x 45mm 260 引脚 SO-DIMM 连接器 | |
The Jetson Orin NX module will be available in Q4 2022. Click to learn more。
NVIDIA JetPack SDK
The NVIDIA JetPack SDK provides access to all Jetson hardware capabilities and allows developers to apply the world-class NVIDIA AI software stack to their next...

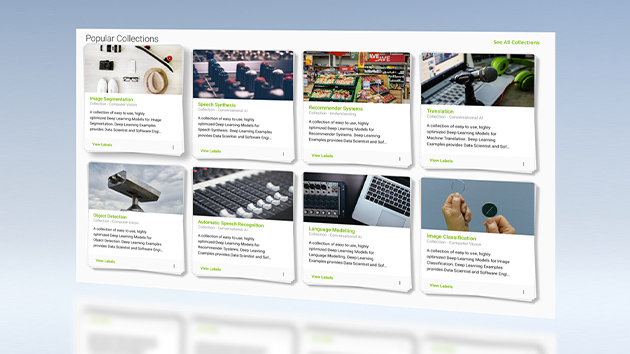

pretrained model
Many AI applications face common needs: classification, object detection, language translation, text-to-speech, recommender system engines, sentiment analysis, ...
NVIDIA Platforms Built for Robotics, Healthcare and Smart Cities
NVIDIA software platforms including Isaac™ for robotics, Clara™ for healthcare, and Metropolis for smart cities accelerate vertical-specific applications。
NVIDIA Isaac is built for robotics
Robots create new efficiencies and improve quality of life in industries such as manufacturing, logistics, healthcare and services. NVIDIA Isaac accelerates thi...
NVIDIA Clara is built for healthcare and life sciences
NVIDIA Clara is a healthcare application framework for the development and deployment of AI-powered imaging, genomics, and smart sensors. It includes full-stack...
NVIDIA Metropolis is built for smart cities
NVIDIA Metropolis includes an application framework, a set of developer tools, and an ecosystem of partners that combine visual data and AI to improve operation...
