Leetop-SUBKIT-Orin NX

带*号为必填选项,提交后我司会安排商务邮箱发送给您对应的产品PDF文档.

产品特点

产品功能

产品简介:

Leetop-SUBKIT-Orin NX是一款嵌入式人工智能计算机,能够为众多终端设备赋予高达70/100TOPS的计算力。Leetop-SUBKIT-Orin NX提供快速的主动散热设计,可以满足抗震防静电等工业标准。同时Leetop-SUBKIT-Orin NX接口丰富,性价比高。


产品规格:

处理器模块:


Jetson Orin NX 8GBJetson Orin NX 16GB
AI Performance70 TOPS100 TOPS
GPU1024-core NVIDIA Ampere GPU with 32 Tensor Cores
CPU6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L38-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Video Encode1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264)
Video Decode1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264)
Memory8 GB 128-bit LPDDR5 102.4 GB/s16 GB 128-bit LPDDR5 102.4 GB/s
Storage

(Supports external NVMe)


接口I/O:

接口 Interface规格 Specification
Network1 × Gigabit Ethernet Connector (10/100/1000)
USB4 × USB 3.0 Type A (Integrated USB 2.0) 1 × USB 3.0 Type C (Integrated USB 2.0,Support OTG)
Video output1 × HDMI 2.0 (TYPE A)
CAN1 × CAN
SPI Bus2 × SPI Bus(+3.3V Level)
M.2 KEY M1 × M.2 KEY M Interface(Type 2280)
M.2 KEY E1 × M.2 KEY E Interface
Camera2x CSI


供电Power Supply:

Power SupplySpec
Input Voltage+9--+20V DC Input 5A
power consumptionabove 60W


结构Mechanical:

MechanicalSpec
Dimensions (W×D ×H)100×80.6×33.4 (mm)
Weight0.179KG


环境Environmental:

EnvironmentalSpec
Operating Temperature-25-750.2~0.3m/s气流
Storage Temperature-40C-80
Storage Humidity10%-90% non-condensing 非结露环境

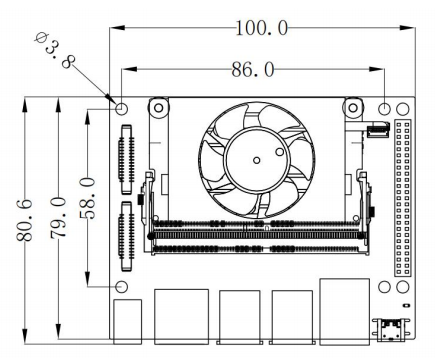

尺寸示意图Schematic diagram of dimensions:

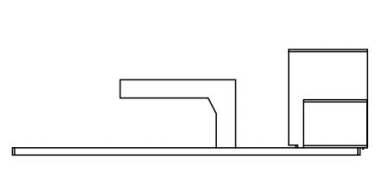

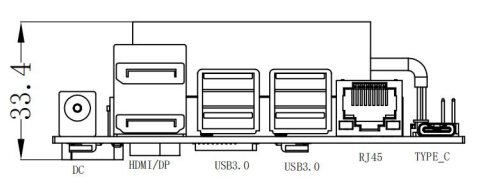

正视图 Front view左视图 Left view

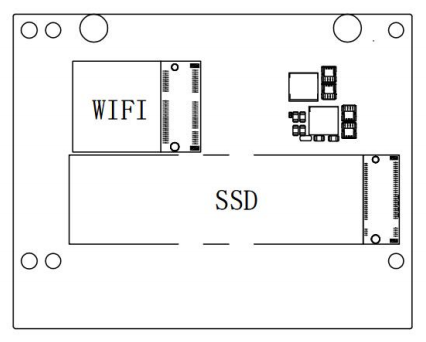

俯视图 Up view后视图 Rear view
