产品简介
Product introduction
Leetop ALP_606F是基于英伟达Orin Nano/Orin Nx核心板研发的-款嵌入式人工智能计算机，能够为众多终端设备赋予高达20/40/70/100TOPS的计算力。Leetop ALP_606 F提供快速的主动散热设计，可以满足抗震防静电等工业标准。同时Leetop ALP 606 F接口丰富性价比高。
Leetop ALP606 F is an embedded artificial intelligence computerbased on NVIDIA Orin Nano/Orin Nx module,which can provide up to20/40/70/100TOPS computing power to many terminal devices.Leetop ALP_606 F provides active thermal design for fast,which canmeet industrial standards such as seismic and anti-static. At the sametime ,Leetop ALP 606 F interface rich, high cost performance
产品规格 Product specification
处理器模块 Processor module
| Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | |
| AI Performance | 20 TOPS | 40 TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | — (Supports external NVMe) | |
| Jetson Orin NX 8GB | NX 8GB Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 102.4 GB/s 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
接口I/O
| 接 口 Interface | 规格 Specification |
| Network | 1 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0 +3.0Type C |
| Video output | 1 × HDMI |
| CAN | 1 × CAN 1CAN（Receive. Transceiver） |
| SPI Bus | 1 × SPI Bus(+3.3V Level) |
| Power | +9--+20V (60W) |
供电 Power Supply
| Power Supply | Spec |
| Input Voltage | +9--+20V (60W) |
| Power consumption | 60W |
结构 Mechanical
| Mechanical | Spec |
| Dimensions (W×D ×H) | 116x87x43(mm) |
| Weight | 531g |
环境Environmental
| Environmental | Spec |
| Operating Temperature | -25℃-75℃ |
| Storage Humidity | 10%-90% non-condensing 非结露环境 |
尺寸示意图Schematic diagram of dimensions

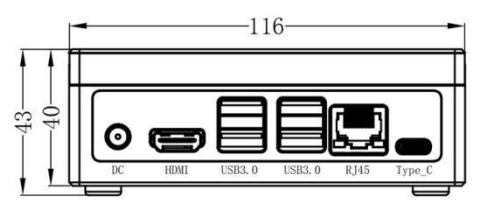

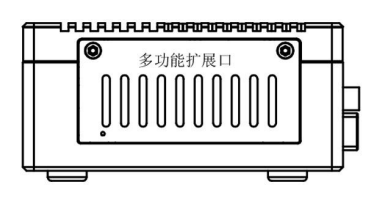

| 正视图 Front view | 左视图 Left view |
 |  |

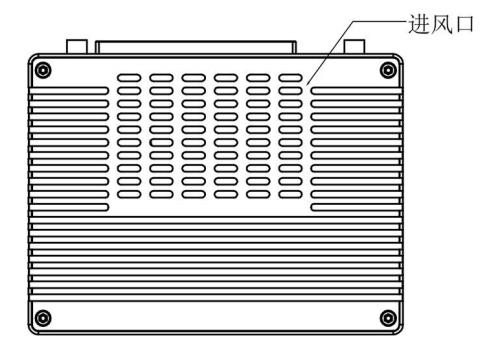

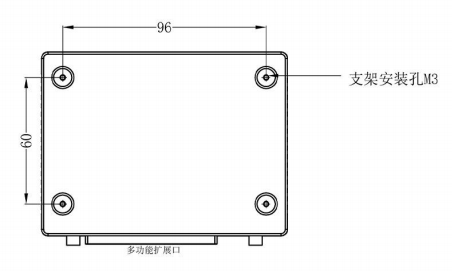

| 俯视图 Up view | 底部图 Bottom view |
 |  |
选配表Matching table
| Product name | Core module | SSD | communication | power |
| ALP-606-F | ||||
| J1:Orin Nano(4G) | ||||
| J2:Orin Nano(8G) | ||||
| J3:Orin NX(8G) | ||||
| J4:Orin NX(16G) | ||||
| N | ||||
| 128G | ||||
| 256G | ||||
| 512G | ||||
| 1T | ||||
| N | ||||
| N | ||||
| 01:明纬 | ||||
| 02:定制 |
