产品简介:
Product Introduction

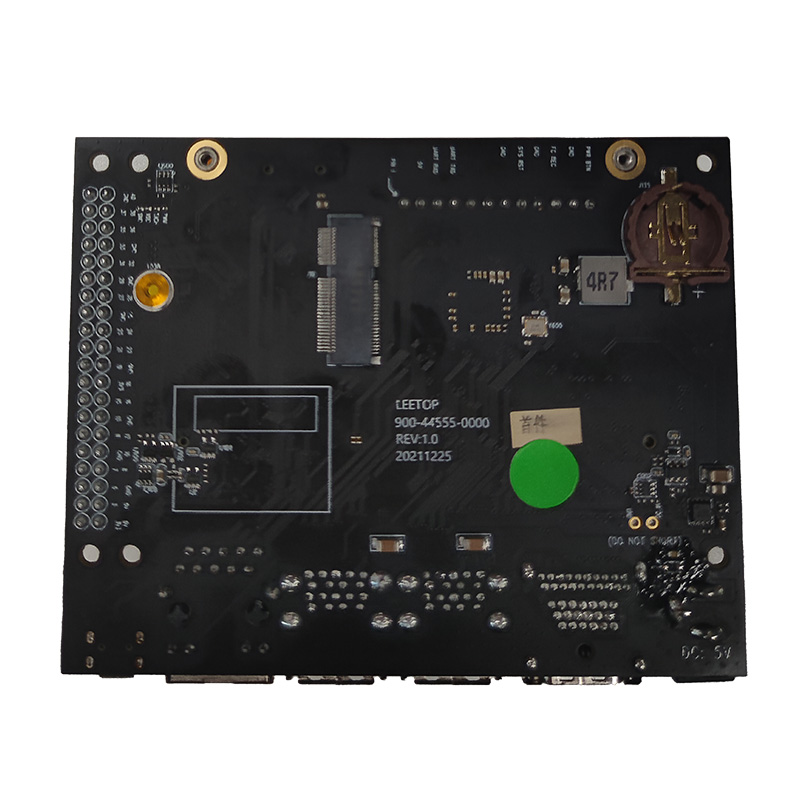

Leetop_A206_Nano 是 基 于 英 伟 达 Nano 核 心 板 研 发 的 一 款 高 性 能 ， 接 口 丰 富 的 NVIDIA Jetson Nano 载 板 。 能 够 为 众 多 终 端 设 备 赋 予 高 达 472 GFLOPs 算 力 ， 同 时 Leetop_A206_Nano载板提供丰富的外围接口。可以满足抗震防静电等工业标准。
Leetop_A206_Nano is a high-performance, interface-rich NVIDIA Jetson Nano carrier board developed based on NVIDIA Nano core board. It can give up to 472 GFLOPs computing power to many end devices, while providing rich peripheral interfaces Leetop_A206_Nano carrier board. It can meet industrial standards such as earthquake resistance and anti-static.
产品规格 Product Specifications
处理器模组 Processor module
| Jetson Nano | |
| AI Performance | 472 GFLOPS |
| GPU | 128-core NVIDIA Maxwell™ architecture GPU |
| CPU | Quad-Core Arm® Cortex®-A57 MPCore processor |
| Video Encode | 1x 4K30 (H.265) 2x 1080p60 (H.265) |
| Video Decode | 1x 4K60 (H.265) 4x 1080p60 (H.265) |
| Memory | 4GB 64-bit LPDDR4 25.6GB/s" |
| Storage | 16GB eMMC 5.1 † |
接口 I/O interface
| 接口 interface | 规格/Specifications |
| DC | Power supply interface |
| Display | 1 x HDMI;1xDP |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x Micro USB 2.0 (Support OTG) |
| Network | 1x Gigabit Ethernet (10/100/1000) |
| TF Card | 1xTF Card |
| M.2 KEY E | 1x M.2 KEY E Interface |
| Camera | 2x Camera |
| FAN | 1 x FAN(5V PWM) |
| CAN | 1x CAN |
供 电 Power Supply
| Power Supply | Spec |
| Input Voltage | +4.75 - 5.25V DC Input@6A |
| Power consumption | up to 20W |
结 构 Mechanical
| Mechanical | Spec |
| Dimensions (LxW) | 100x78（mm） |
| Weight | 81.70g |
环 境 Enviromental
| Environmental | Spec |
| Operating Temperature | -25℃-70℃ |
| Storage Temperature | -20℃-60℃ |
| Storage Humidity | 10%-90% non-condensing |
