产品简介:
Product Introduction

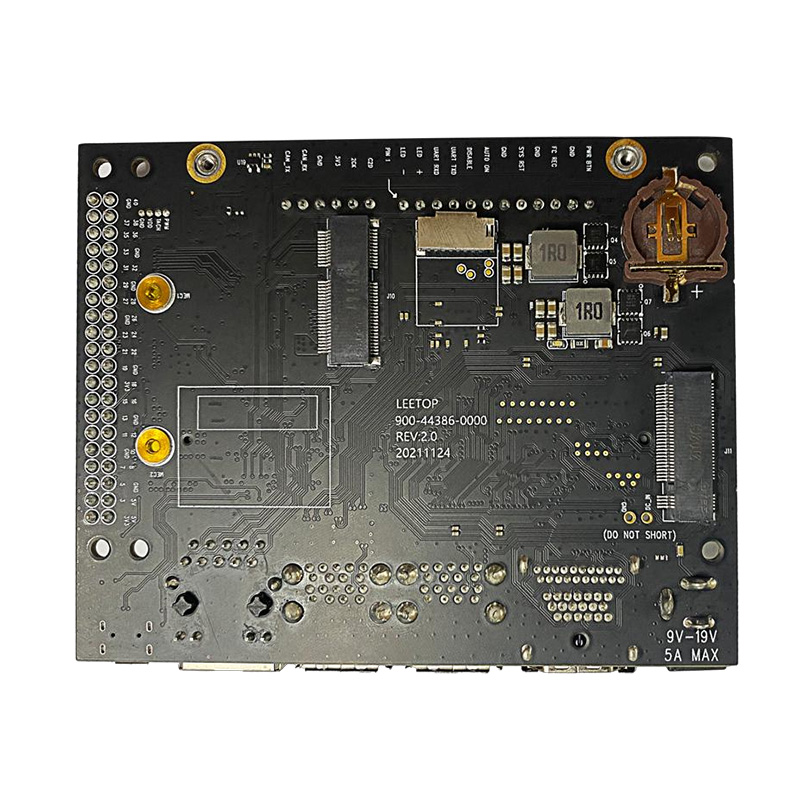

Leetop_A206是基于英伟达 Xavier NX/Nano核心板研发的一款高性能，接口丰富的 NVIDIA Jetson Xavier NX/Nano 载 板 。 能 够 为 众 多 终 端 设 备 赋 予 高 达 21 TOPS (INT8)/472 GFLOPs算力，同时A206载板提供丰富的外围接口。可以满足抗震防静电等工 业标准。
Leetop_A206 is a high-performance, interface-rich NVIDIA Jetson Xavier NX/Nano carrier board developed based on NVIDIA's Xavier NX/Nano core board. It can give up to 21 TOPS (INT8)/472 GFLOPs computing power to many end devices, while the A206 carrier board provides rich peripheral interfaces. It can meet industrial standards such as earthquake resistance and anti-static.
产品规格Product Specifications
处理器模组 Processor module
| Jetson Xavier Nx | Jetson Xavier Nx16GB | Jetson Nano | |
AI Perform ance | 21 TOPS | 472 GFLOPS | |
| GPU | 384-core NVIDIA Volta™ architecture GPU with 48 Tensor Cores | 128-core NVIDIA Maxwell™ architecture GPU | |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 | Quad-Core Arm® Cortex® -A57 MPCore processor | |
| Video Encode | 2x 4K60 (H.265) 4x 4K30 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265) | 1x 4K30 (H.265) 2x 1080p60 (H.265) | |
| Video Decode | 2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265) | 1x 4K60 (H.265) 4x 1080p60 (H.265) | |
| Memory | 8GB 128-bit LPDDR4x 59.7GB/s | 16GB 128-bit LPDDR4x 59.7GB/s | 4GB 64-bit LPDDR4 25.6GB/s" |
| Storage | 16GB eMMC 5.1 | 16GB eMMC 5.1 † | |
接口 I/O interface
| 接口 Interface | 规格/Specifications |
| DC | Power supply interface |
| Display | 1 x HDMI;1xDP |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x Micro USB 2.0 (Support OTG) |
| Network | 1x Gigabit Ethernet (10/100/1000) |
| Standard USB WIFI MODE(4 PIN Interface) | USB WIFI MODE |
| M.2 KEY M | 1x M.2 KEY M Interface |
| Camera | 2x Camera |
| FAN | 2 x Fan(12V/5V),1 x FAN(5V PWM) |
| CAN | 1x CAN |
供 电 Power Supply
| Power Supply | Spec |
| Input Voltage | +9- +19V DC Input@60W |
| Power consumption | up to 60W |
结 构 Mechanical
| Mechanical | Spec |
| Dimensions (LxW) | 100x78（mm） |
| Weight | 82.05g |
环 境 Enviromental
| Environmental | Spec |
| Operating Temperature | -25℃-60℃ |
| Storage Temperature | -20℃-60℃ |
| Storage Humidity | 10%-90% non-condensing |
