产品简介：
Product introduction:
Leetop_ALP_205E 是一款嵌入式智能计算机，核心计算单元采用英伟达Jetson Xavier NX核心板，提供21TOPS计算力。Leetop_ALP_205E采用被动散热方式，面板扩展多种工业接口，能够满足工业检测、视频分析等场景应用。
Leetop_ALP_205E is an embedded intelligent computer. The core computing unit uses the Nvidia Jetson Xavier NX core board, which provides 21TOPS computing power. Leetop_ALP_205E adopts passive heat dissipation mode, and the panel extends a variety of industrial interfaces, which can meet the scene applications such as industrial inspection and video analysis.
产品规格 Product specification：
处理器模块 Processor module：
| Jetson Xavier NX | Jetson Xavier NX 16GB | |
AI Performance | 21 TOPS | |
| GPU | 384-core NVIDIA Volta™ architecture GPU with 48 Tensor Cores | |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64- bit CPU6MB L2 + 4MB L3 | |
Video Encode | 2x 4K60 (H.265) 4x 4K30 (H.265) 10x 1080p60 (H.265) 22x1080p30 (H.265) | |
video Decode | 2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265) | |
| Memory | 8GB 128-bit LPDDR4x 59.7GB/s | 16GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16GB eMMC 5.1 | |
产品规格 Product specification：
| Interface | Specifications |
| Network | 2× Gigabit Ethernet Port |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0 Type C |
Video output | 2× HDMI 2.0（TYPE A） |
| Audio | 1xAudio |
| SIM_Card | 1× SIM_Card |
| TF_Card | 1xTF card |
| 20PIN | Multifunctional pin |
| Function Key | 1× Power KEY, 1× Reset KEY, 1× Recovery KEY（Button） |
| POWER | Power supply interface |
| Project | Spec |
| Input Voltage | Wide input 9-36V DC |
| Load capacity | Above 60W |
| Dimensions (W×D ×H) | 224x130x65.5(mm) |
| OperatingTemperature | -25℃-65℃ 0.2~0.3m/s airflow |
| Storage Temperature | -20℃-60℃ |
| weight | 2KG |
尺寸示意图：
Schematic diagram of dimensions：

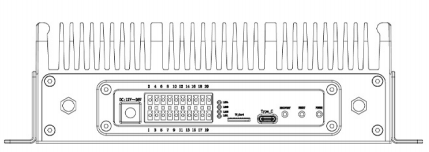

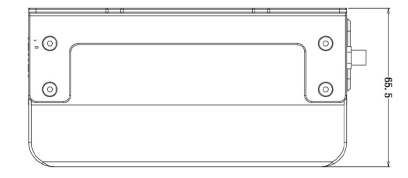

| 正视图 Front view | 左视图 Left view |
 |  |

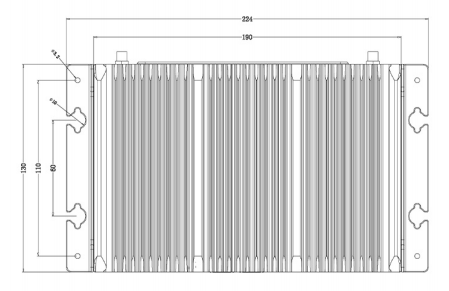

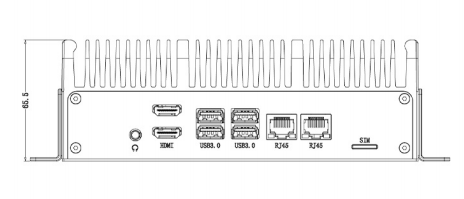

| 俯视图 Up view | 吐谈圆 Rearview |
 |  |
