产品简介：
Product introduction:
Leetop_SUBKIT_608_Orin_NANO 是基于英伟达Orin NANO核心板研发的一款嵌入式人工智能计算机,能够为众多终端设备赋予高达20/40TOPS的计算力。Jetson Orin NANO可以和NVIDIA强大的AI软件堆栈/SDK及软件平台相结合，作为高性能低功耗的嵌入式边缘计算机设备，主要应用于制造、物流、零售、扶额u、农业、智慧城市、医疗保健、生命科学等领域的先进人工智能机器人、边缘检测设备和AI应用场景。Leetop_SUBKIT_608_Orin_NANO提供快速的主动散热设计，可以满足抗震防静电等工业标准。同时Leetop_SUBKIT_608_Orin_NANO接口丰富性价比高。
Leetop_ SUBKIT_ 608_ Orin_ NANO is an embedded artificial intelligence computer developed based on the NVIDIA Orin NANO core module, which can provide up to 20/40 TOPS of computing power to numerous terminal devices. Jetson Orin NANO can be combined with NVIDIA powerful AI software stack/SDK and software platform. As an embedded edge computer device with high performance and low power consumption, it is mainly used in advanced artificial intelligence robots, edge detection equipment and AI application scenarios in manufacturing, logistics, retail, Fuer, agriculture, smart cities, health care, life sciences and other fields. Leetop_ SUBKIT_ 608_ Orin_ NANO provides fast active cooling design that can meet industry standards such as seismic and anti-static protection. Meanwhile, Leetop_ SUBKIT_ 608_ Orin_ NANO interface is rich andcost-effective.
产品规格 Product specification：
处理器模块 Processor module：
| Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | |
| AI Performance | 20TOPS | 40TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Core | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode | 1x4K60(H.265) 2x4K30 (H.265) 5x1080p6(0H.265) 11x1080p30(H.265) | |
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | — (Supports external NVMe) | |
产品规格:
Product specification：
| Feature | Specification |
| Module Compatibility | Jetson Orin NANO |
| Display | 1x DP |
| Ethernet | 2x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.2 Type A (Integrated USB 2.0) 1x USB 2.0+3.2 Type C |
| M.2 KEY M | 1xM.2KEY M(SSD) Interface 1xM.2KEY E(WIFI) Interface 1xM.2 KEY B(4G/5G) Interfac |
| Camera | 2xCSI Camera |
| FAN | 1xFAN(5V PWM) |
| RTC CON | 1x 3.0V RTC |
| CAN | 1xCAN (FD) |
| Audio | 1x3.5 Audio Jack; 2X MIC; 2X SPEAKER; 1X SPEAKER FEEDBAC |
| Function CON | 2X IIC; 1X SPI; 7X IO 3.3V; 2x UART; 1X DEBUG; 1X POWER; 1X RESET; 1X RECOVER |
| DC | Power interface |
产品规格:
Product specification：
| Project | Spec |
| Input Voltage | +9-- +20V(MAX 60W) DC Input |
| Load capacity | Above 60W |
| Dimensions (W×D ×H) | 101.5x96.2x31.1(mm) |
| Operating Temperature | -25℃-65℃ |
Storage Temperature Humidit | -25℃-65℃ 10% -90% non condensation environment |
| Weight | 0.2 KG |
尺寸示意图：
Schematic diagram of dimensions：

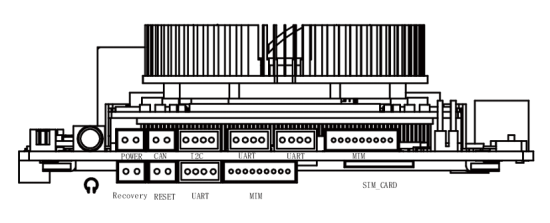

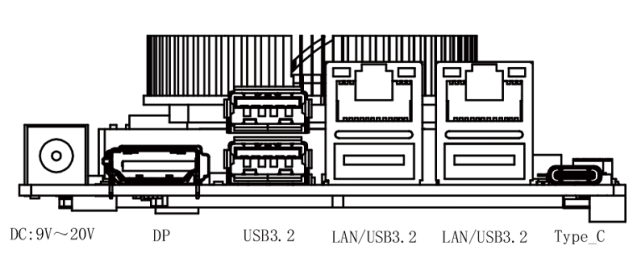

| 正视图 Front view | 左视图 Left view |
 |  |

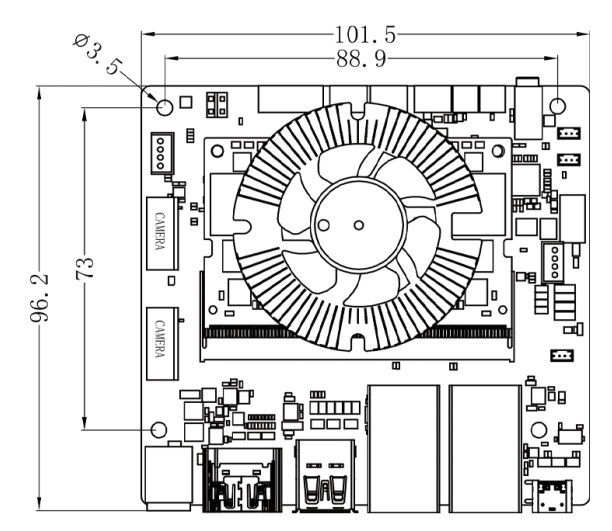

| 俯视图 Up view | 后 视 图 Rear view |
 |  |
