产品特点
产品功能
产品简介：
Product introduction:
Leetop_SUBKIT_610_Orin_NX是基于英伟达Orin NX核心板研发的 款嵌入式人工智能计算机，能够为众多终端设备赋予高达70/100TOPS的计算力。Jetson Orin NX可以和NVIDIA强大的AI软件堆栈/SDK及软件平台相结 合，作为高性能低功耗的嵌入式边缘计算设备，主要应用于制造、物流、零 售、服务、农业、智慧城市、医疗保健、生命科学等领域的先进人工智能机器 人、边缘检测设备和AI应用场景。 Leetop_SUBKIT_610_Orin_NX提供快速的 主动散热设计，可以满足抗震防静电等工业标准。同时
Leetop_SUBKIT_610_Orin_NX接口丰富性价比高。
Leetop_SUBKIT_610_Orin_NX an embedded artificial intelligence computer based on NVIDIA's Orin NX core module, which can give up to 70/100TOPS computing to many terminal devices Force. Jetson Orin NX can be combined with NVIDIA's powerful AI software stack/ SDK and software platform as a high-performance and low-power embedded edge computing device, mainly used in manufacturing, logistics, retail, services, agriculture, smart city, healthcare, life sciences and other fields of advanced artificial intelligence robots, edge detection equipment and AI application scenarios. Leetop_ SUBKIT_610_Orin_NX provides a fast active heat dissipation design that can meet industry standards such as anti-vibration and anti-static . meantime Leetop_SUBKIT_610_Orin_NX interfaces are abundant and cost-effective.
产品规格 Product specification：
处理器模块 Processor module：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm ® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
| Project | Spec |
| Input Voltage | +10---+24V(60W) DC Input |
| Load capacity | Above 60W |
| Dimensions (W×D ×H) | 104.9x100.08x33.05 (mm) |
| Operating Temperature | -25℃-70℃ |
Storage Temperature /Humidity | -25℃-65℃ 10%-90% Non Condensing Environment |
| Weight | 0.18615KG |
| Interface | Specification |
| Network | 1x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 3X USB(CONNECT) 1x USB2.0 (TYPE C) |
| Video output | 2× HDMI |
| Function key | 1x Power key; 1xRcecovery key ; 1xReset key |
尺寸示意图 ：
Schematic diagram of dimensions：

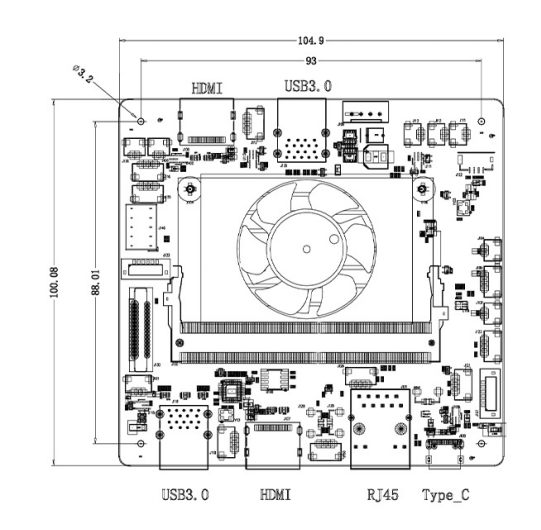

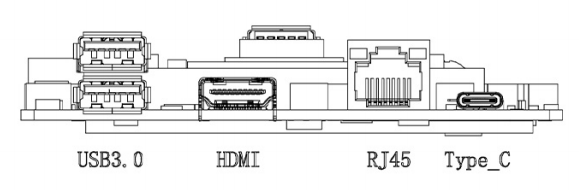

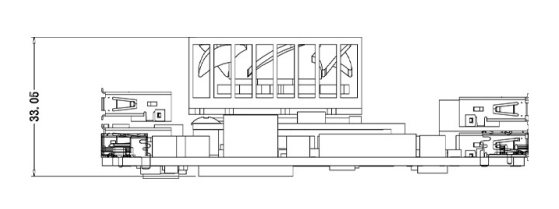

| 正视图 Front view | 左视图 Left view |
 |  |

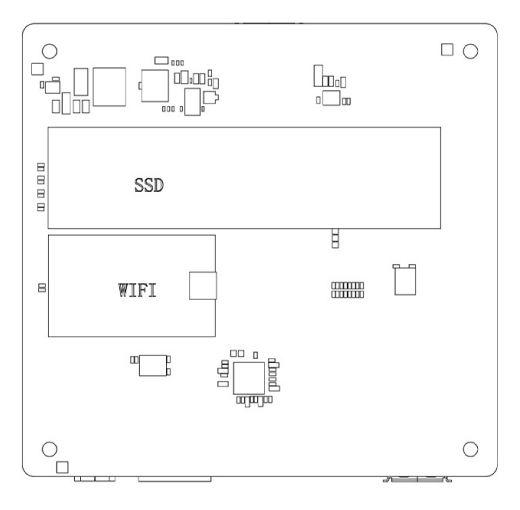

| 俯视图 Up view | 底部图 Bottom view |
 |  |
