产品简介：
Product introduction:

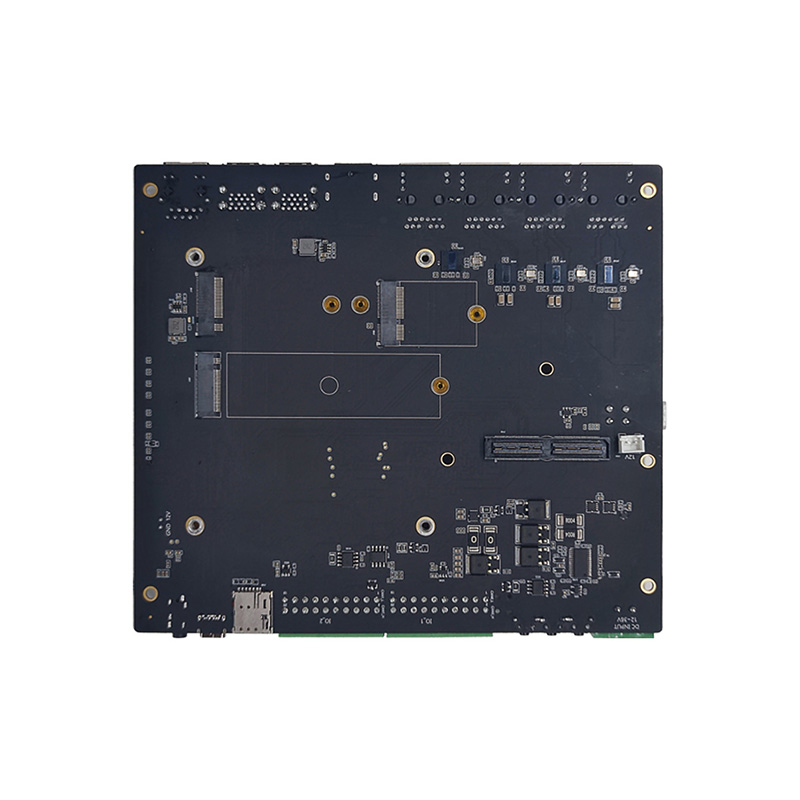

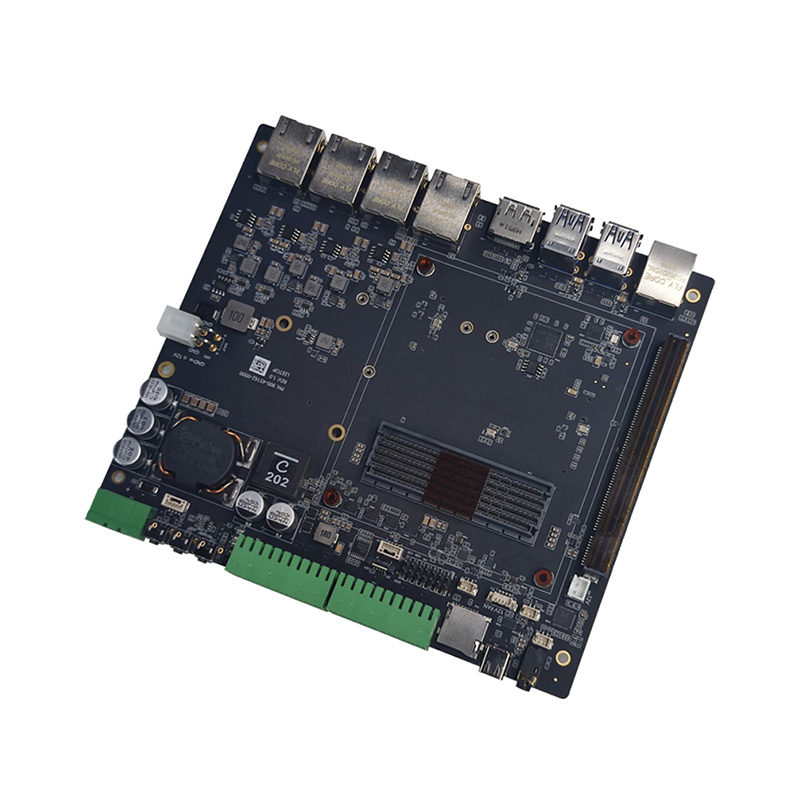

Leetop_A682是基于英伟达AGX Orin核心板研发一款高性 能载板。同时Leetop_A682载板具有丰富的接口，并能为的 众多终端设备赋予高达200/275TOPS算力。此外Leetop_ A682提供丰富的外围接口。符合抗震防静电等工业标准。
Leetop_A682 is a high-performance carrier board developed based on NVIDIA AGX Orin core module. The Leetop_A682 carrier board has rich interfaces and can provide up to 200/275TOPS computing power for many terminal devices. In addition, Leetop_A682 provides rich peripheral interfaces. Comply with industrial standards such as earthquake resistance and anti-static.
产品规格 Product specification：
处理器模块 Processor module：
| specifications | ||
| Module | Jetson AGX Orin 32GB | Jetson AGX Orin 64GB |
| AI Performance | 200TOPS | 275TOPS |
| CPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| GPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 2MB L2 + 4MB L3 | 12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Memory | 32 GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 | |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | 2x 4K60 4x 4K30 8x 1080p60 16x 1080p30 (H.265) 2x 4K60 4x 4K30 7x 1080p60 15x 1080p30 (H.264) |
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | 1x 8K30 (H.265) 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 22x 1080p30 (H.265) |
| Power | 15W - 40W | 15W - 60W |
产品规格 ：
Product specification：
| Feature | Specification |
| Module Compatibility | Jetson AGX Orin |
| Display | 1x DP |
| Ethernet | 1x Gigabit Ethernet (10M/100M/1000M) |
| 4x10G(10M/100M/1000M) | |
| USB | 4x USB 3.2Type A (Integrated USB 2.0) 1x USB2.0+ 3.2 (TYPE C) |
| Misc. | 1X RS232；2X I2C； 1X I2S；2X CAN； 1X SPI1X RS485； 1X UART；8X GPIO |
| FAN | 1x FAN (12V PWM) |
| Function Key | 1x Power key; 1x Reset key; 1x Recovery key; |
| DC | power interface |
| Project | Specification |
| Input Voltage | +12-36V(120W) DC Input |
| Load capacity | Above 90W |
| Dimensions (W×D ×H) | 180X160(mm) |
| Operating Temperature | -25℃- 70℃ |
Storage Temperature Humidity | -25 ℃ -65 ℃ 10% -90% Non condensation environment |
| Weight | 0.29215KG |
