产品简介：
Product introduction:
Leetop_B100_Kit是一款设计独特、性能卓越的开发套件，搭载了强大的RDK X3模组。其推理算力高达5 Tops， 同时搭载了4核ARM Cortex®A53处理器，为用户提供卓越的 计算性能。支持3路CSI Camera接口，使其适用于各种视觉应用。 此外，Leetop_B100_Kit还配备了4路USB3.0接口和2路USB2.0 接口，为用户提供多样化的外设连接选项，充分满足各类场景的 使用需求。
Leetop_B100_Kit is a development tool with unique design and excellent performance The kit is equipped with the powerful RDK X3 module. Its reasoning computing power is as high as 5 Tops.It is also equipped with an 4-core ARM Cortex®A53 processor to provide users with excellent computing performance.Supports 3-way CSI Camera interface, making it suitable for various vision applications. In addition, Leetop_B100_Kit is also equipped with 4 USB3.0 interfaces and 2 USB2.0 interfaces.Provide users with a variety of peripheral connection options to fully meet the needs of various scenarios.
产品规格 ：
Product specification ：
| Project | Sp ecification |
| Module Compa tibility | RDK X3 Moudle |
| Displa y | 1x HDMI |
| Et hernet | 1x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 2x USB 2.0(1xDebug;1xMicro USB |
| Audio | 2x SPEAKER; 1x Audio jack |
| Camera | 3x CSI Camera |
| FAN | 1xFAN(5V PWM) |
| RTC CON | 1x3.0V RTC |
| DC | Power interface |
| Input Voltage | 12V(MAX 35W) DC Input |
| Load capacity | Above 35W |
| Operating Temperature | -20℃-60℃ |
Storage Temperat ure Humidit | -20℃-60℃ 10% -90% Non condensation environment |
产品规格 Product specification：
处理器模块 Processor module：
RDK X3 Moudle 主要包含四核Cortex®A53处理器、5Tops算力、最高4GB内存且支持4K@60帧视频编解；主要接口包括 HDMI、千兆以太网、USB 3.0、USB2.0、MIPI CSI、UART Debug、TF 卡接口等。
模组搭载双频 2.4/5.0GHz 无线局域网和蓝牙 4.2 模块，单板上已具备 PCB 天线，同时也可以搭配外部天线套件使用，能够实现无线连接，降低用户开发和 测试成本，缩短上市时间。
RDK X3 Module 可选的板载 RAM 容量包括 2GB、4GB。
RDK X3 Moudle mainly includes a quad-core Cortex® A53 processor, 5Tops computing power, up to 4GB memory and supports 4K@60 frame video encoding and decoding; the main interfaces include HDMI, Gigabit Ethernet, USB 3.0, USB2.0, MIPI CSI, UART Debug, TF card interface, etc.
The module is equipped with dual-band 2.4/5.0GHz wireless LAN and Bluetooth 4.2 modules. The board already has a PCB antenna and can also be used with an external antenna kit to achieve wireless connections, reduce user development and testing costs, and shorten time to market.
The optional onboard RAM capacities of RDK X3 Module include 2GB and 4GB.
尺寸示意图：
Dimensional diagram：

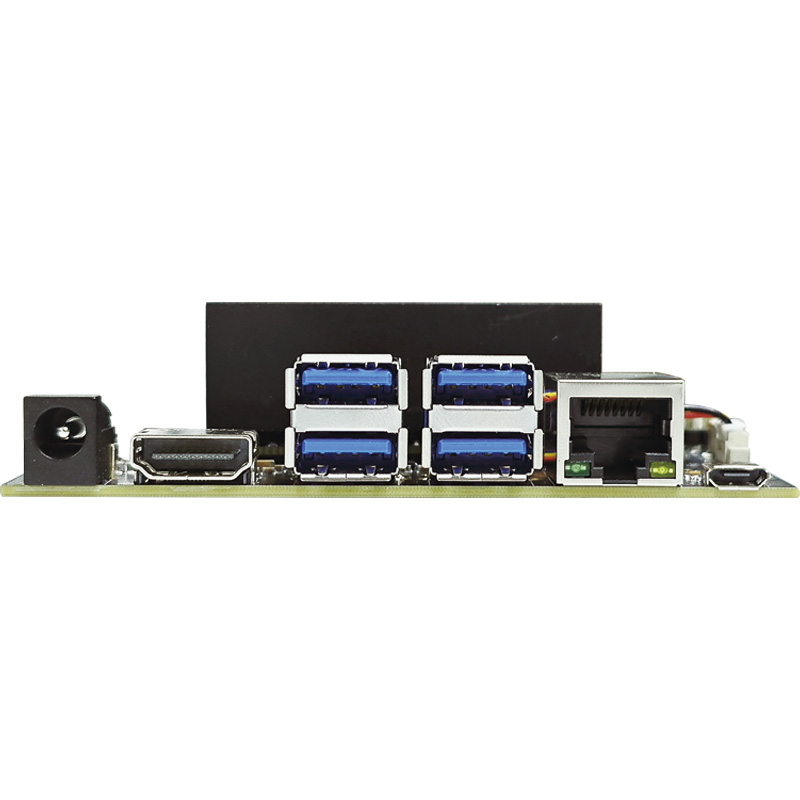

| 正视图 Front view | 左视图 Left view |
 |  |

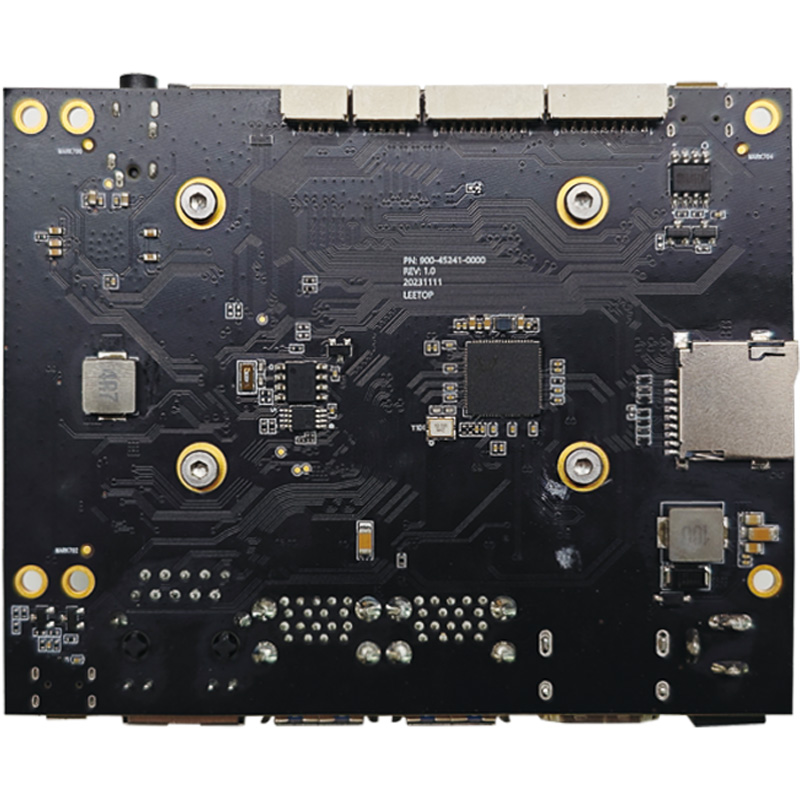

| 俯视图 Top view | 底部视图 Bottom view |
 |  |
